- New design, reasonable structure, more ergonomic
- Adopt with imported lens, small ligh decline, small laser beam, fast speed and high precision
- Transparent fireproof glass makes machine safety and beautiful
- Designed with frond and back door for long material feeding
- Patented technology, three side exhaust system completely removing smoke and dust

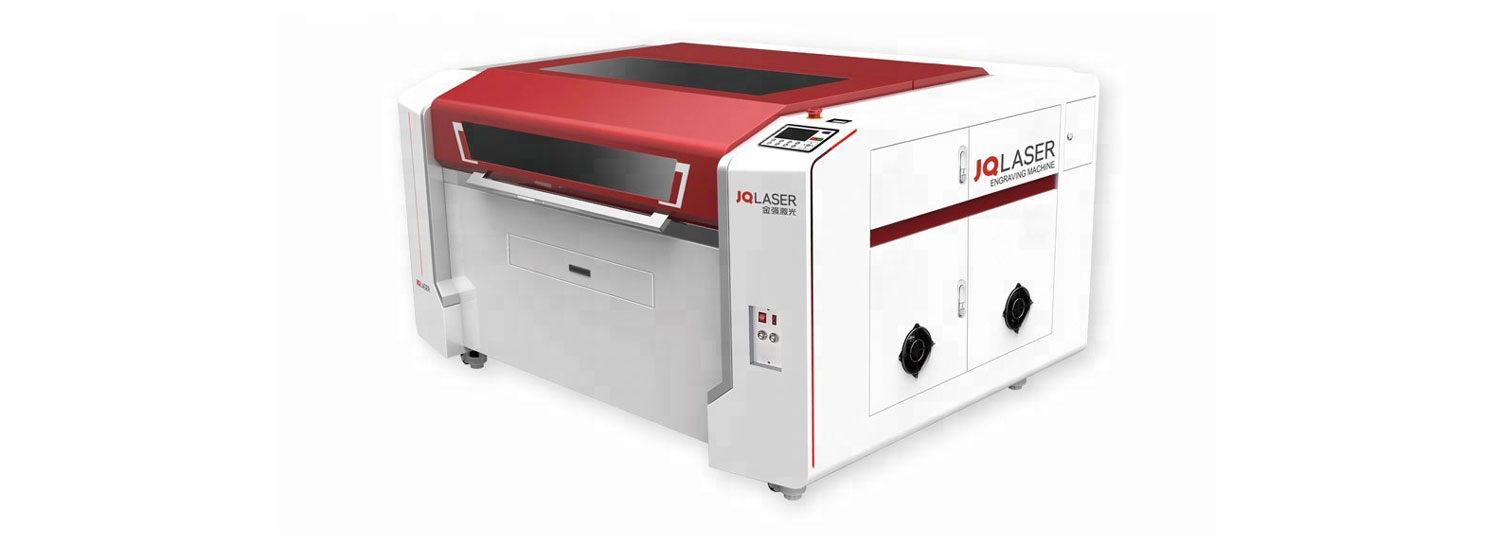

| Model | JQ 1390 CO2 130W |
|---|---|
| Laser power | 100W |
| Laser type | sealed CO2 laser tube,water-cooled, 0.6um |
| Work Area | 1300 X 900 mm |
| Resetting positioning accuracy | ±0.01mm |
| Cooling Type | Water-cooled and Protection System |
| Engraving Scanning Speed | 0-60000 mm/min |
| Cutting Speed | 0-1000mm/min |
| Laser Output Control | 1-100% Software Setting |
| Smallest Character Engraving | English: 1.0X1.0 mm |
| Highest Scanning Precision | 2500DPI |
| Power Supply | AC 110-220V±10%, 50-60Hz |
| Operating Temperature | 0oC-45°C |
| Operating Humidity | 5%-95% |
| Locating Precision | ≤±0.01mm |
| Supported File Format | DSTPLTBMPDXFAI |
| Compatible Software | TAJIMA, CORELDRAW, PHOTOSHOP, AUTO CAD, All Type of AUTO CAD Software in cloth |
| Slope Engraving | 360°Slope Can Be Designed Easily |
| Driving System | Stepper Electrical Motor |
| Package Dimension | 2160*1710*1300 mm |
| Net Weight | 600 KGS |
| Gross Weight | 650 KGS |
| Optional Spare Parts | Up-down Worktable, Rotary System, Honeycomb Worktable |
| Removable Spare Parts | Laser Tube and Lens |
The above listed datas are according to speed as the hightest value.
Because of different computers, it will have 10% of the error. Datas should be subject to actual operation.
