- USB off-line control system and interface.
- Small noise, home making with anhydrous alarm amd automatic protection features
- Dust, pollution prevention design
- High-precision die casting and flying optics design
- This equipment can be applied to many kind of materials and has many advantagessuch as smooth cutting edges, free from polishing, noisy free, high processing speed, high precion, less waste and higher effciency
| Model | JQ 1325 CO2 130W |
|---|---|

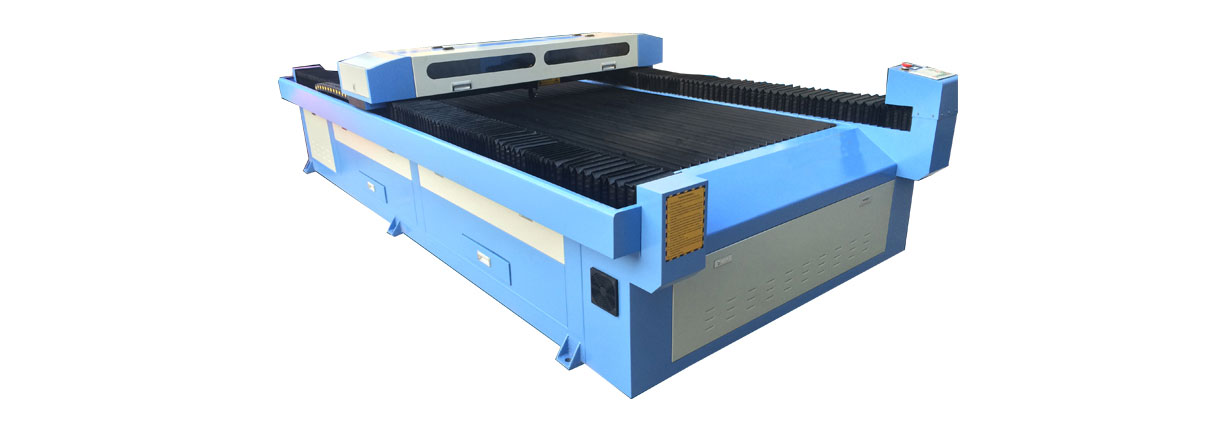

| Item / Model | JQ1325 Laser Cutting Machine |
| Cutting area | 1300 x 2500mm |
| Laser power | 150w |
| Laser type | CO2 Laser tube |
| Cutting speed | 0 -5000mm/min |
| Resetting positioning accuracy | ±0.01mm |
| Power supply | AC 110 - 220V ± 10%, 50 - 60Hz |
| Operating temperature | 0 - 45°C |
| Operating humidity | 5 - 95% |
| Min. shaping character | Character 2*2mm, English 1 x 1mm |
| Graphic format supported | PLT,DXF,BMP, AI,DST |
| Software supported | CorelDraw, Photoshop, Auto-CAD |
| Driving system | Stepper or servomotor |
| Cooling mode | Water-cooling and protection system |
| Optional Spare Parts | Laser Tube |
| Recommended Spare Parts | Laser Tube and Lens |
The above listed datas are according to speed as the hightest value.
Because of different computers, it will have 10% of the error. Datas should be subject to actual operation.
